MNS低壓抽屜柜適用于交流50（60）Hz，額定電壓380（400）V的控制、配電系統，適用于電廠、電站、工礦企業等電力用戶，作為動力配電、電動機控制、無功電容補償及照明等配電設備的電能轉換、分配和控制之用。這種柜型具有獨特的免維護絕緣轉接結構。下面來介紹下它的性能特點與柜體結構特征：
MNS low-voltage drawer cabinet is applicable to the control and distribution system with AC 50 (60) Hz and rated voltage 380 (400) V, and is applicable to power users such as power plants, power stations, industrial and mining enterprises, as well as power conversion, distribution and control of power distribution equipment, motor control, reactive capacitance compensation and lighting. This cabinet type has a unique maintenance-free insulation transfer structure. The following describes its performance characteristics and cabinet structure characteristics:
性能特點：
Performance characteristics:
1．功能單元采用模塊設計，結構緊湊，可隨意組合不同模數的抽屜單元，在較小的空間內可容納較多的功能單元。抽屜單元互換性強。
1. The functional unit adopts modular design with compact structure. It can combine drawer units of different modules at will, and can accommodate more functional units in a smaller space. The drawer unit has strong interchangeability.
2．柜內按一、二次回路的功能劃分為裝置抽屜隔室、電纜隔室、母線隔室以及二次端子隔室。隔室之間采用接地的鋼板和獨特設計的、阻燃的絕緣功能板進行間隔。無裸露帶電體，確保了設備運行和人員的人身。
2. The cabinet is divided into device drawer compartment, cable compartment, bus compartment and secondary terminal compartment according to the function of primary and secondary circuits. The compartments are separated by grounded steel plates and specially designed flame-retardant insulating functional plates. There is no exposed charged body, which ensures the equipment operation and personal safety of personnel.

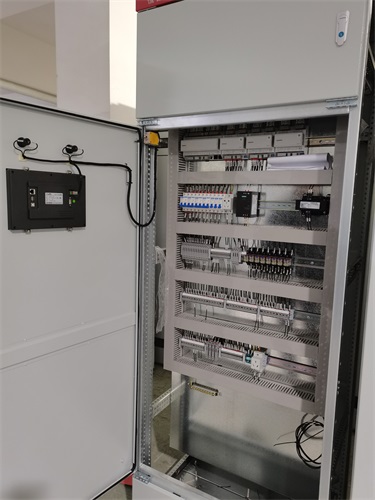

柜體結構特征
Cabinet structure features
1）外殼防護等級不低于IP40，且具有良好的自然通風結構。用于嚴酷環境其防護等級可達到IP54。
1) The enclosure protection grade shall not be lower than IP40 and shall have good natural ventilation structure. For harsh environment, its protection level can reach IP54.
2）柜體可以并排或者背對背放置。非背對背放置時雙面開門，便于維護。
2) The cabinets can be placed side by side or back to back. When not placed back to back, the door is opened on both sides for easy maintenance.
3）進、出線方式多樣，即可設計成上進上出、上進下出、下進下出、下進上出，供用戶隨意選擇。
3) There are various ways of incoming and outgoing lines, which can be designed as up-in and up-out, up-in and down-out, down-in and down-out, and down-in and up-out for users to choose at will.
4）裝置單元抽屜以8E（200×600mm）為基本功能單元，可選擇8E/4、8E/2、8E、12E、16E、20E、24E、36E等功能單元，整柜大為72E。
4) The unit drawer of the device is 8E (200 × 600mm) is the basic functional unit, which can select 8E/4, 8E/2, 8E, 12E, 16E, 20E, 24E, 36E and other functional units, and the whole cabinet is 72E in size.
4.抽屜上裝有機械聯鎖裝置，可閉鎖在工作位置、試驗位置、斷開位置。
4. The drawer is equipped with a mechanical interlock device, which can be locked in the working position, test position and disconnection position.
5．功能單元可按用戶要求，做成抽屜式或固定間隔式。
5. The functional unit can be made into drawer type or fixed interval type according to user requirements.
6.主母線根據進、出線情況，可布置在后部或頂部。
6. The main bus can be arranged at the rear or top according to the incoming and outgoing lines.
MNS低壓抽屜柜的性能特點與柜體結構特征相關內容就講解到這里了，您對此有怎樣的疑惑或者問題就來我們網站
http://hfmbl.cn咨詢吧！
The performance characteristics and structural characteristics of MNS low-voltage drawer cabinet will be explained here. If you have any doubts or questions about this, please come to our website http://hfmbl.cn Ask!
